Diaphragm Seal
Products
Pressure - Diaphragm Seal
Diaphragm Seal - Threaded

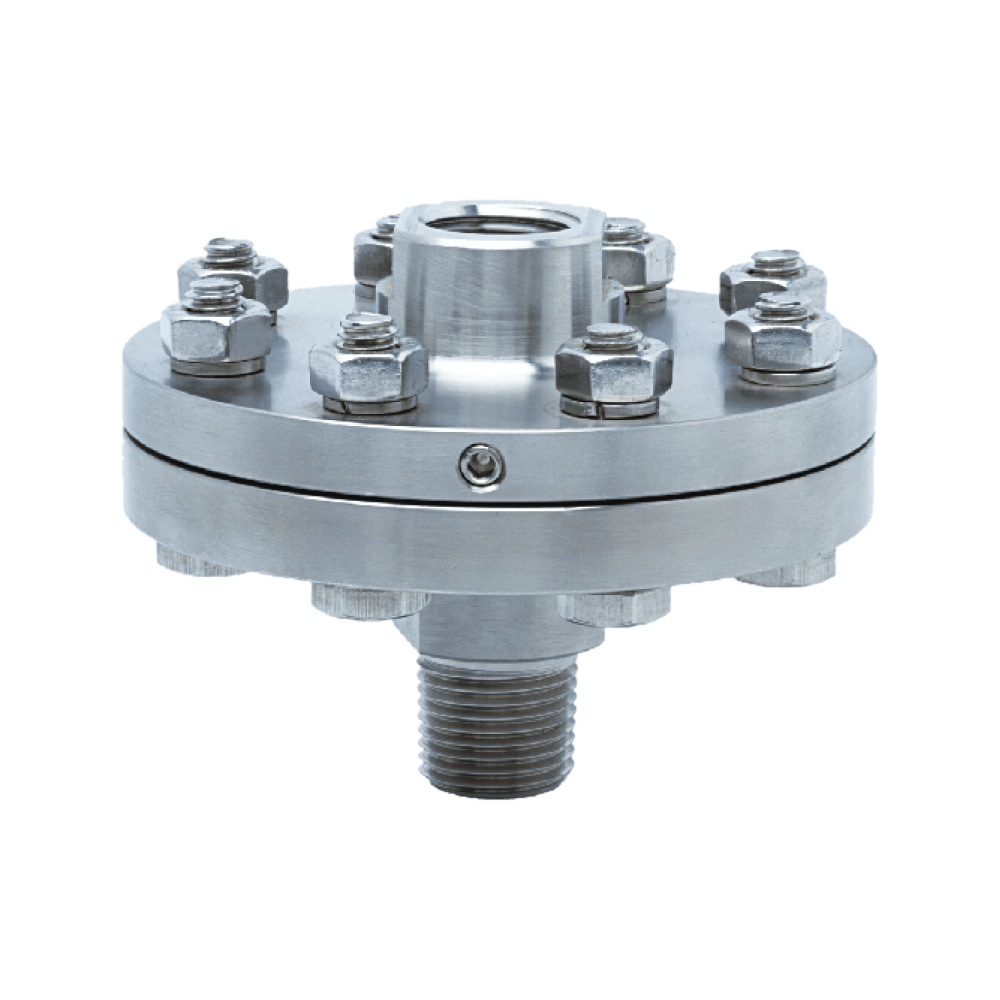

PI-D101
PI Controls Europe - Threaded diaphragm seal, Direct coupled type
Diaphragm Seal - Threaded
- Range type :-1…0 bar & 0…400 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Optional

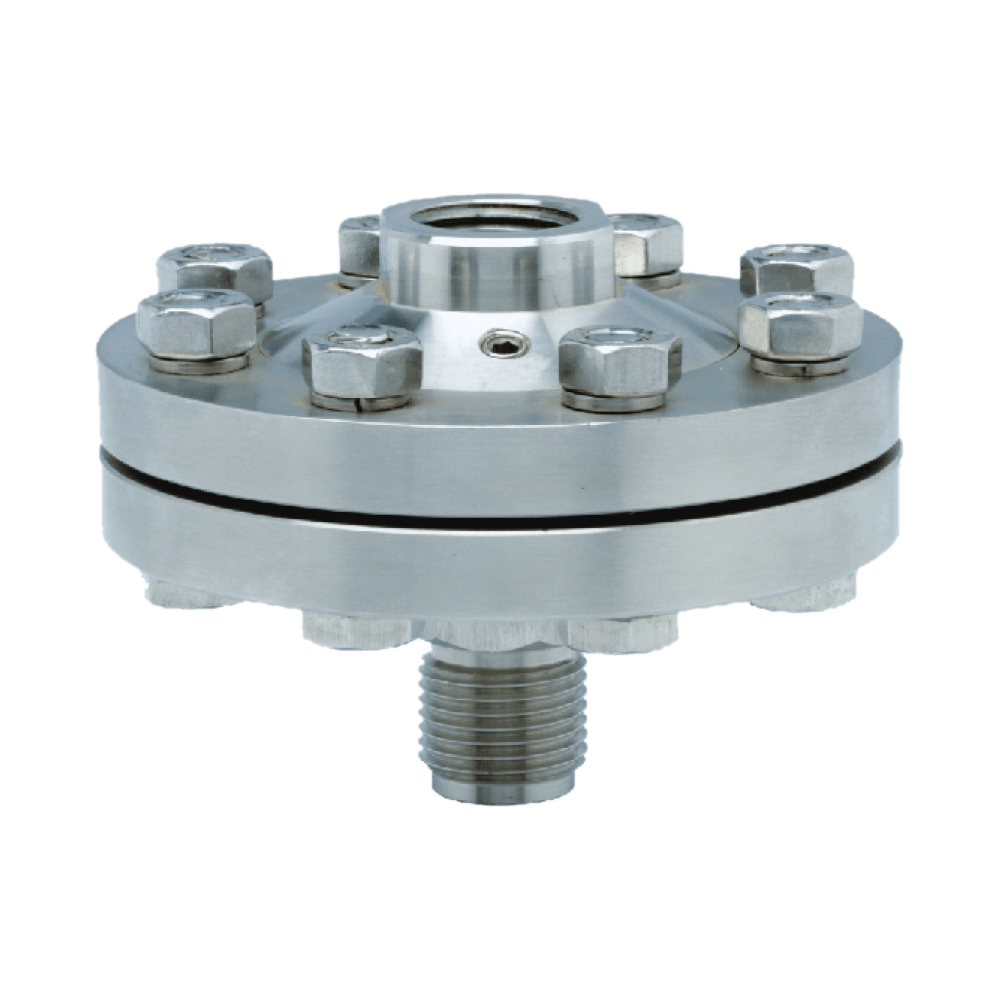

PI-D102
PI Controls Europe - Threaded diaphragm seal, Ring coupled
Diaphragm Seal - Threaded
- Range type :-1…0 bar up to 0…160 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Optional
PI-D103
PI Controls Europe - Heavy duty mini seal
Diaphragm Seal - Threaded
- Range type :-1…0 bar up to 0…600 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Not available
- Assembly :Direct/Remote

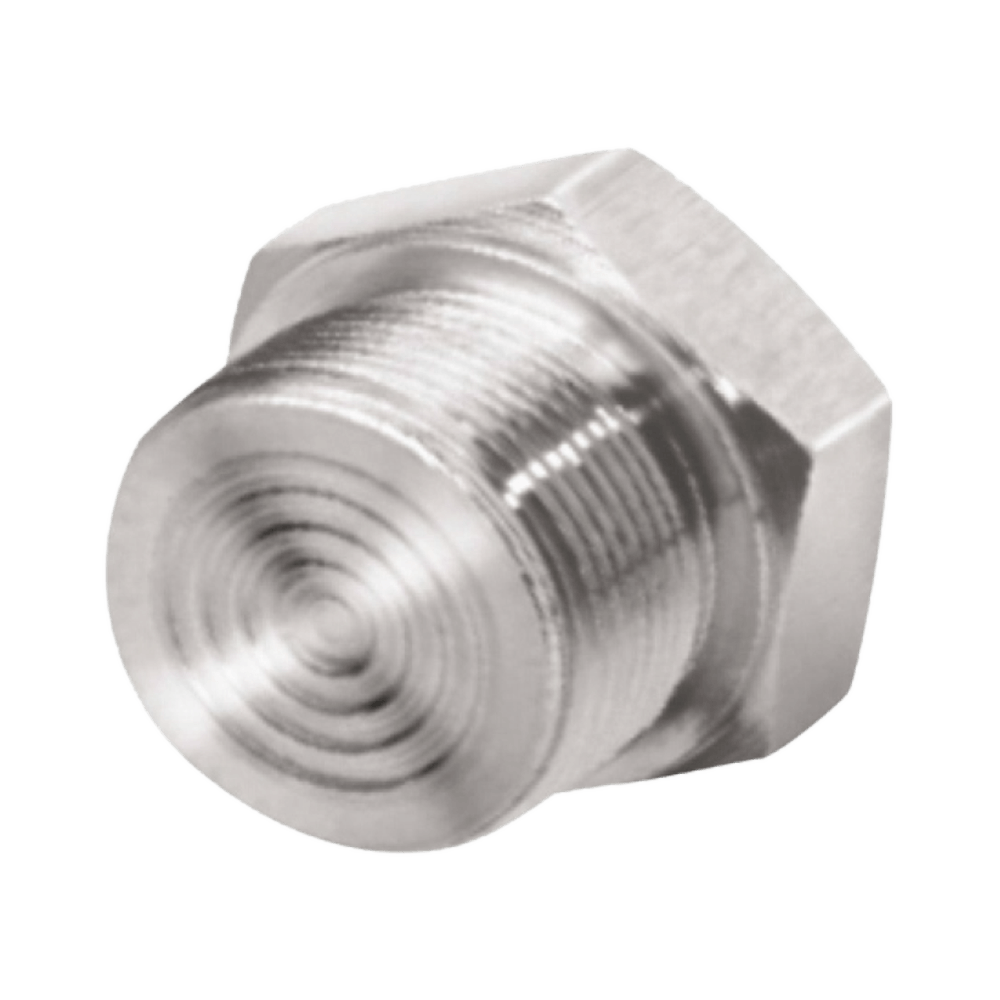

PI-D104
PI Controls Europe - Screwed flush diaphragm seal
Diaphragm Seal - Threaded
- Range type :0...4 bar up to 0…600 bar
- Wetted parts :AISI 316L SS (Others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Not available
- Assembly :Direct/Remote
Diaphragm Seal - Flanged

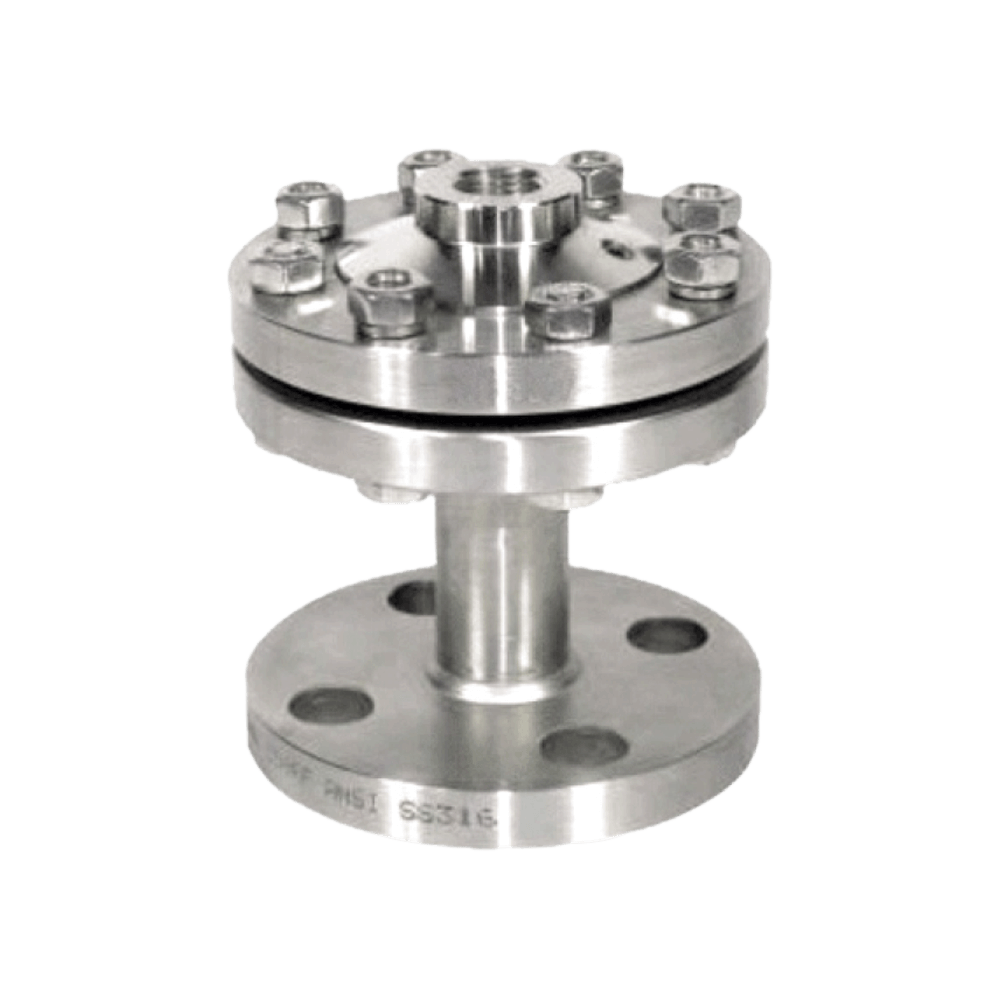

PI-D201
PI Controls Europe - Flanged diaphragm seal, "I" section
Diaphragm Seal - Flanged
- Range type :-1…0 bar up to 0…400 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Optional
PI-D202
PI Controls Europe - Flanged diaphragm seal, Direct flushed
Diaphragm Seal - Flanged
- Range type :-1…0 bar up to 0…250 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Optional

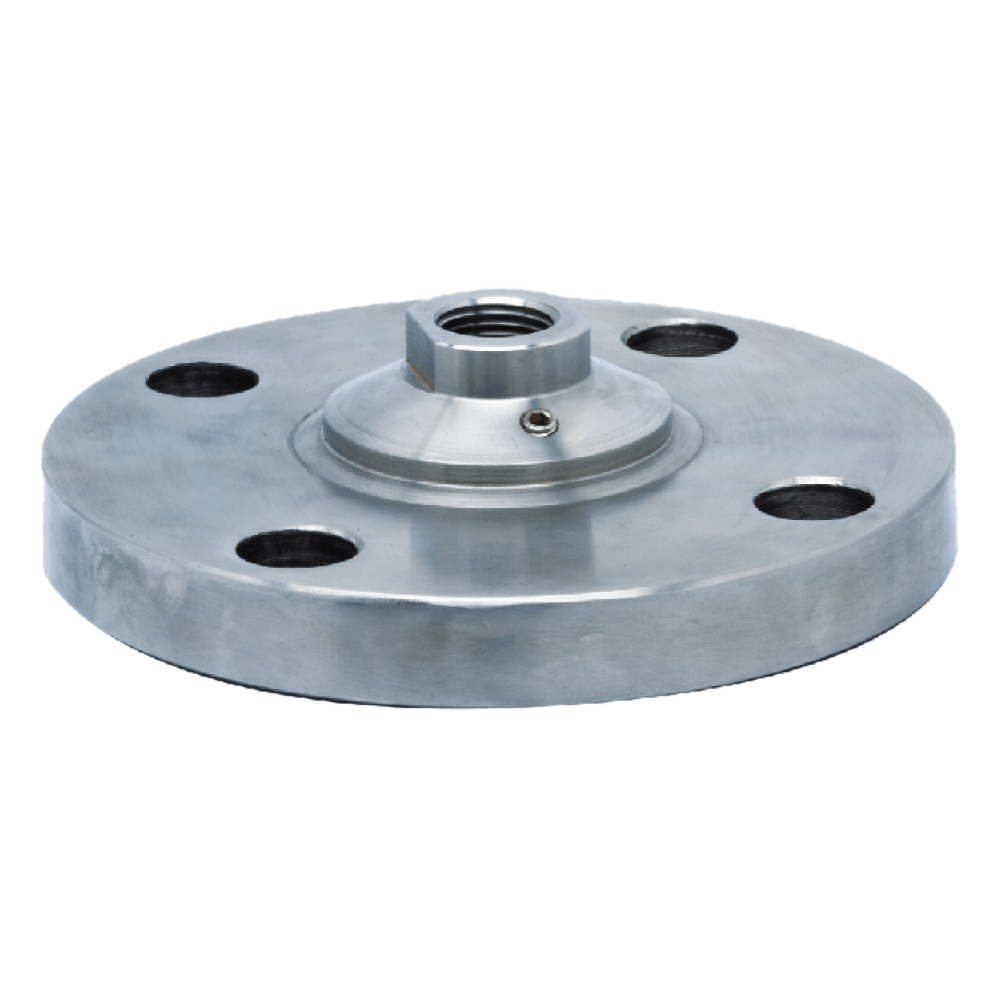

PI-D203
PI Controls Europe - Flanged diaphragm seal, Direct insert
Diaphragm Seal - Flanged
- Range type :-1…0 bar up to 0…250 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Optional up to 40 bar max.

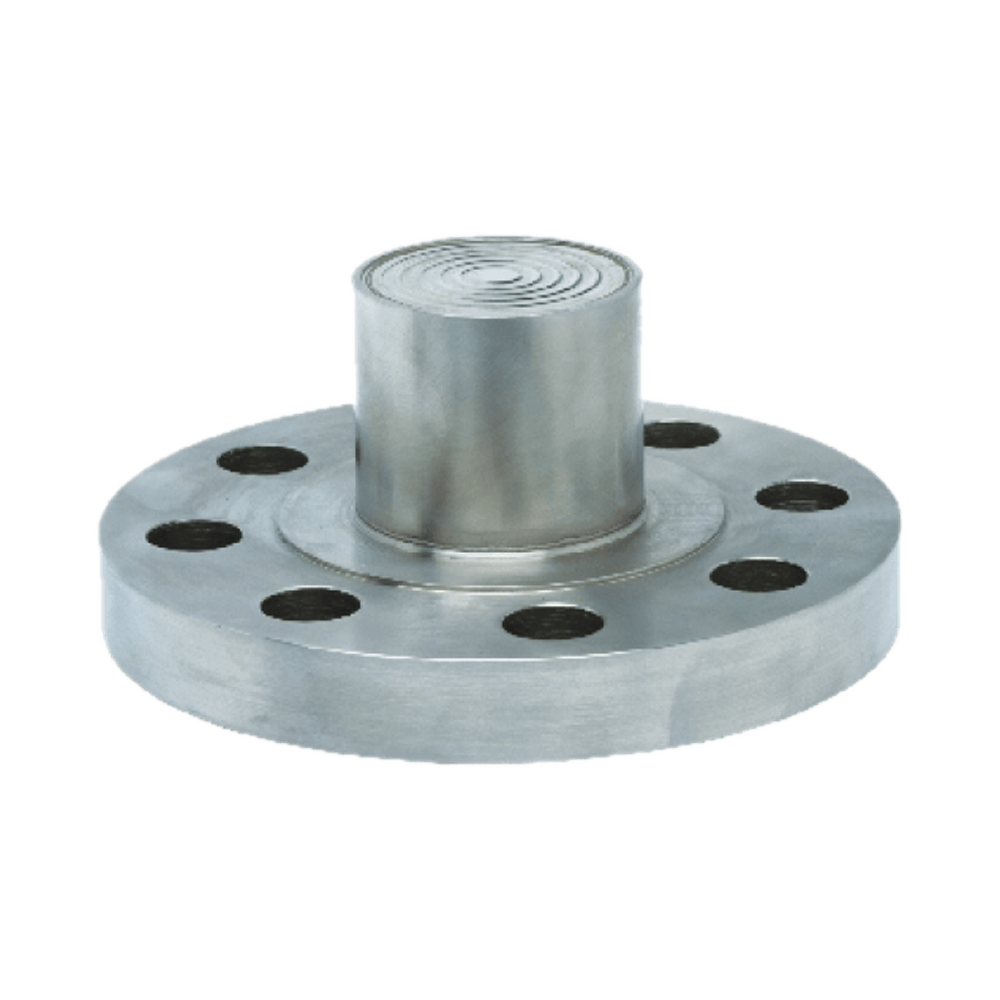

PI-D204
PI Controls Europe - Flanged diaphragm seal, Extended neck
Diaphragm Seal - Flanged
- Range type :-1…0 bar up to 0…250 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Not Applicable
- Assembly :Direct/Remote
Diaphragm Seal - Sanitory

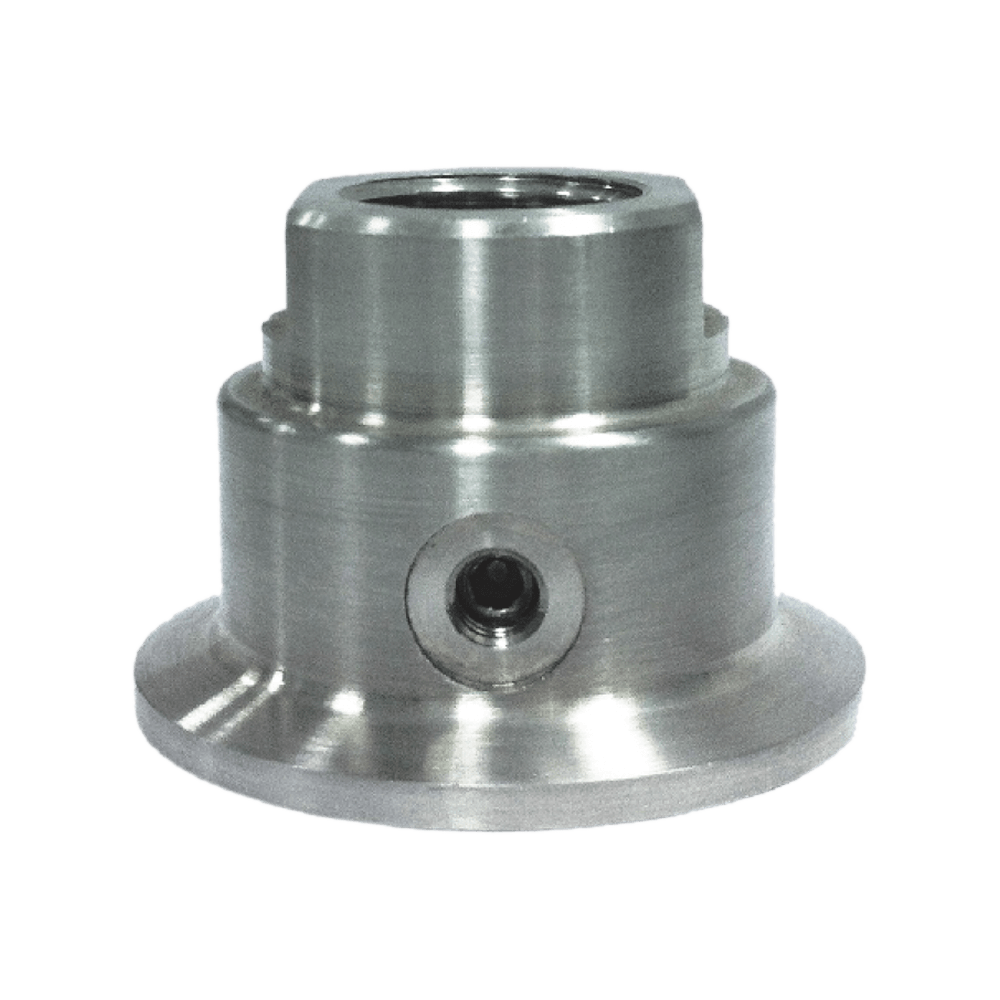

PI-D301
PI Controls Europe - Sanitary diaphragm seal, Tri-clover
Diaphragm Seal - Sanitory
- Range type :-1…0 bar to 0…40 bar
- Chamber material :AISI 316 SS
- Sealing fluid :Glycerine [10°C to 150°C]
- Process connection :1.5" Connection
- Assembly :Direct

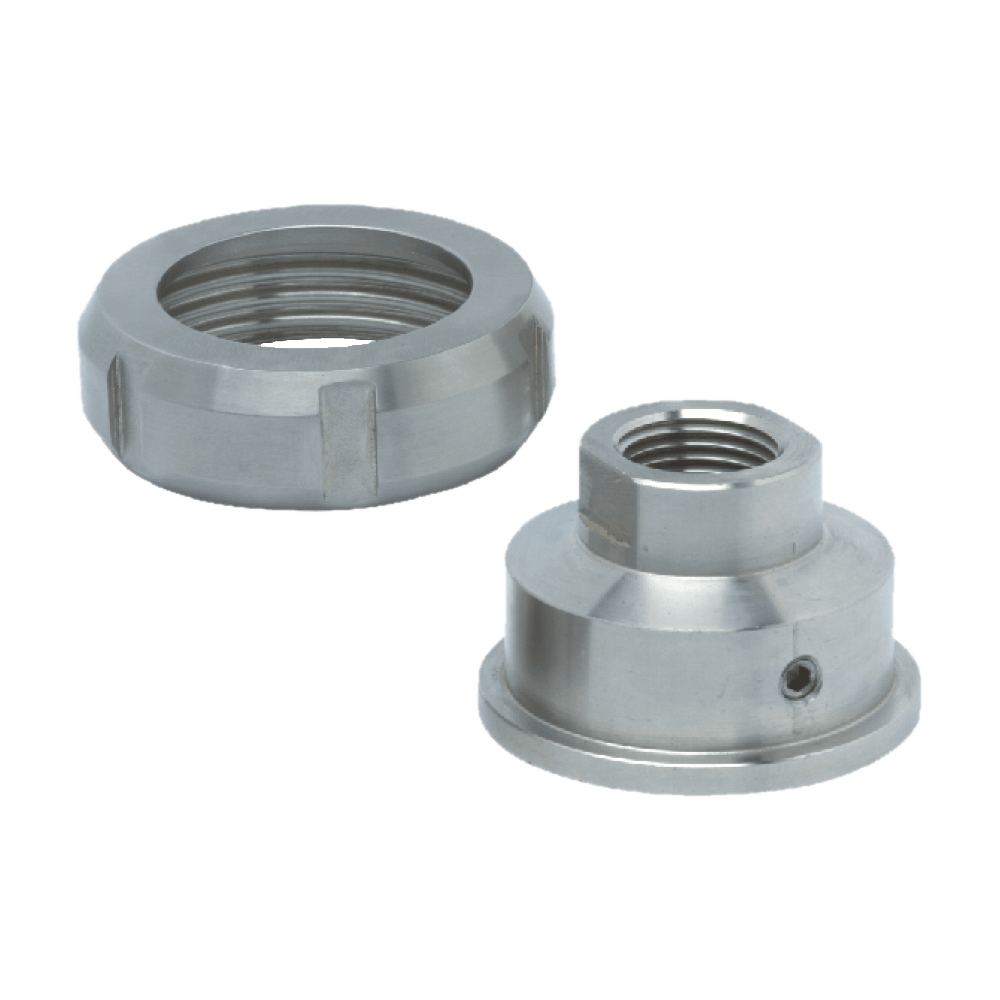

PI-D302
PI Controls Europe - Sanitary diaphragm seal, Flush, union nut
Diaphragm Seal - Sanitory
- Range type :0...1.6to 0...40 bar
- Standards :DIN 11854, SMS, RTJ/APV, IDF/ISS
- Wetted parts :AISI 316L SS
- Sealing fluid :Glycerine [10°C to 150°C]
- Assembly :Direct / Remote

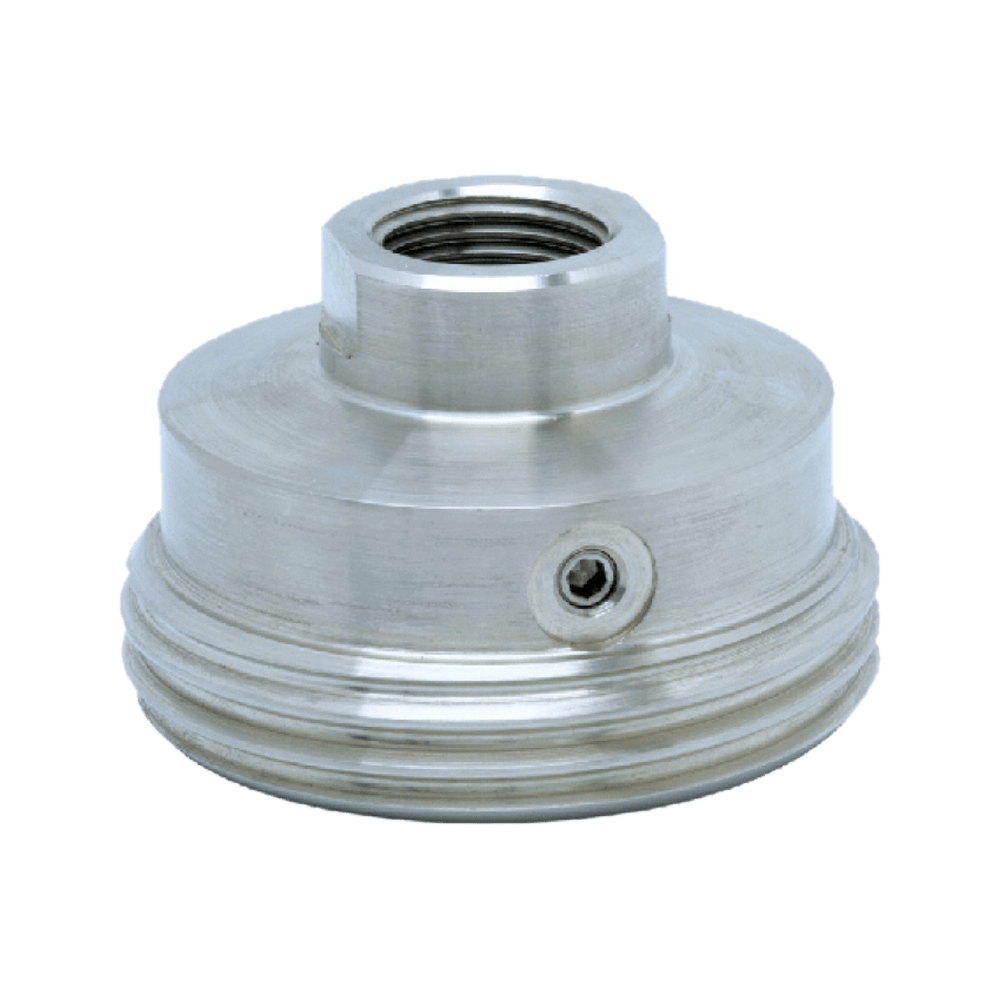

PI-D303
PI Controls Europe - Sanitary diaphragm seal, flushed, male
Diaphragm Seal - Sanitory
- Range type :0...1.6to 0...40 bar
- Standards :DIN 11854, SMS, RTJ/APV, IDF/ISS
- Wetted parts :AISI 316L SS
- Sealing fluid :Glycerine [10°C to 150°C]
- Assembly :Direct / Remote
Diaphragm Seal - Customized

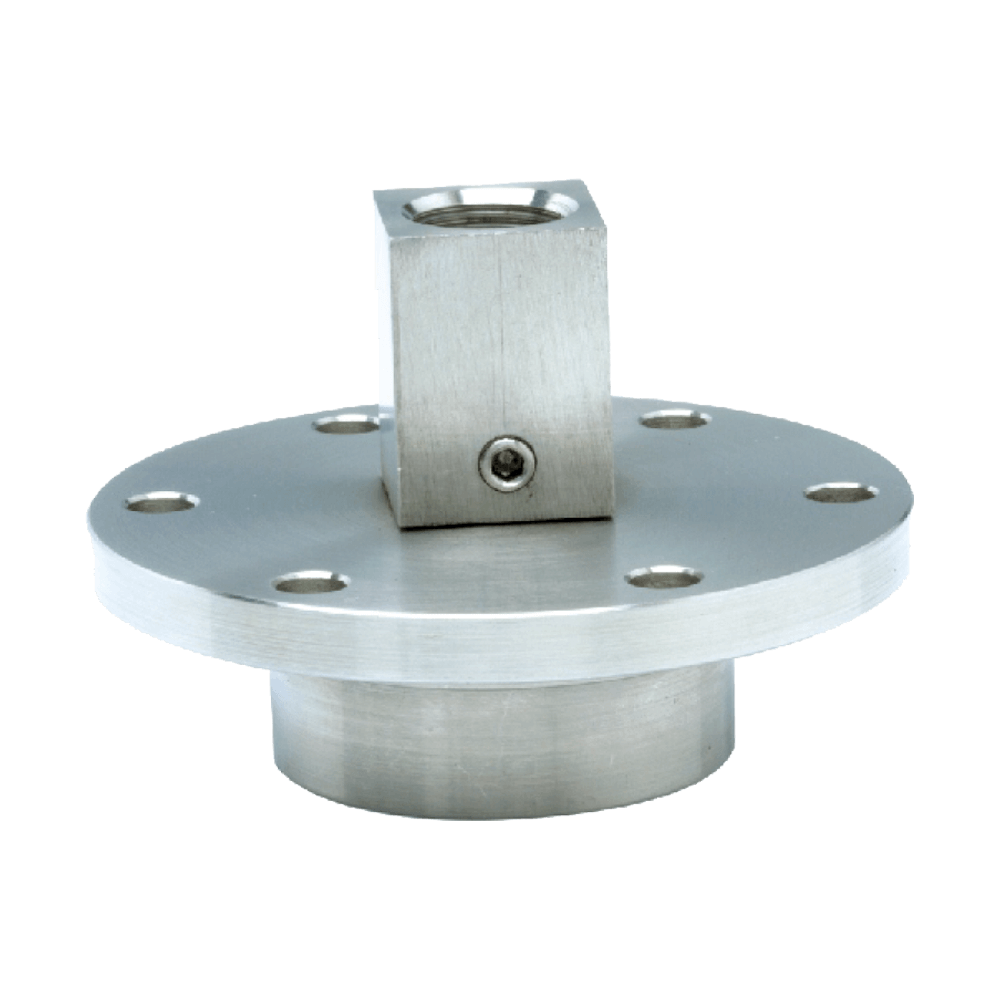

PI-D401
PI Controls Europe - Pulp seal, floating ring type
Diaphragm Seal - Customized
- Range type :4…40 bar
- Diaphragm :AISI 316L SS
- Sealing fluid :Silicon DC 200 (-40…205°C)
- Process connection :Floating ring
- Assembly :Direct

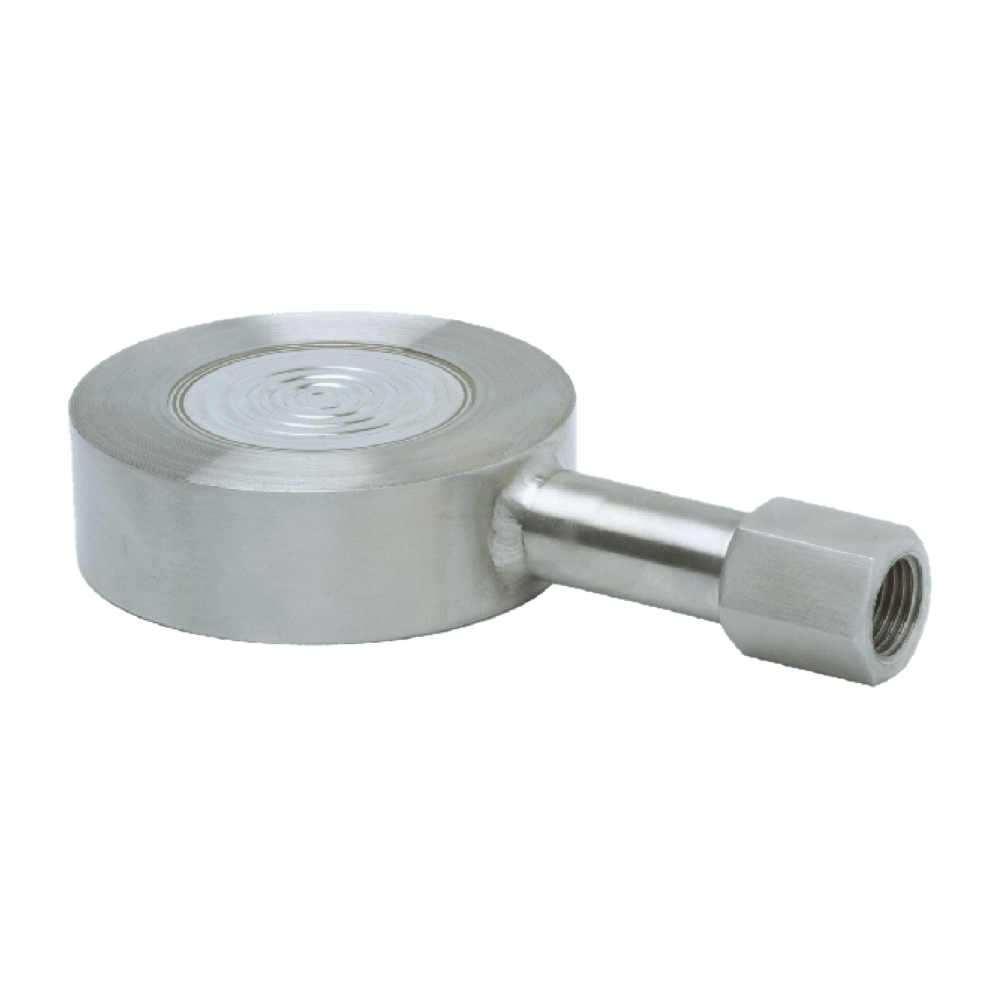

PI-D402
PI Controls Europe - Wafer seal, pan cake
Diaphragm Seal - Customized
- Range type :-1…0 bar up to 0…250 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 70 (7…371°C) (others on request)
- Protection on wetted parts :Optional

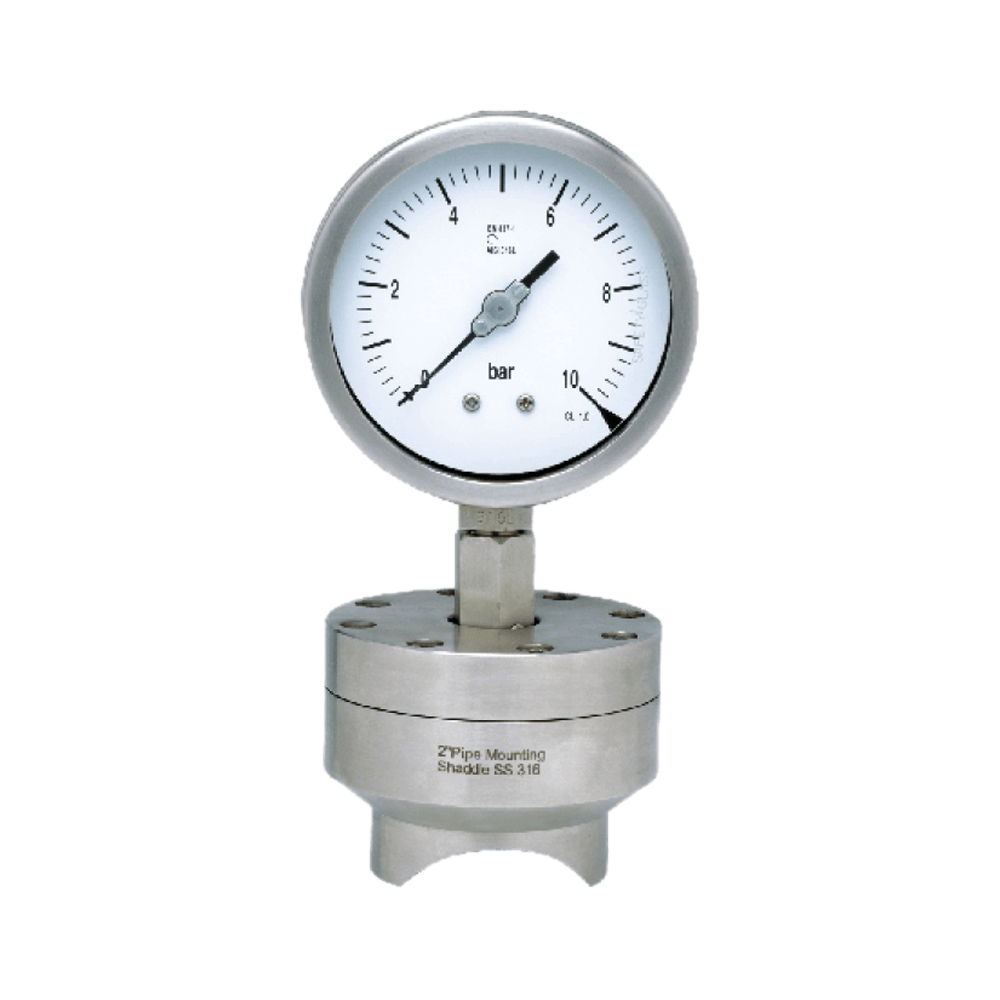

PI-D403
PI Controls Europe - Saddle mounting weld-in diaphragm seal
Diaphragm Seal - Customized
- Range type :-1…0 bar up to 0…100 bar
- Wetted parts :AISI 316L SS
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Suitable to :2.5" to 14"
- Assembly :Direct

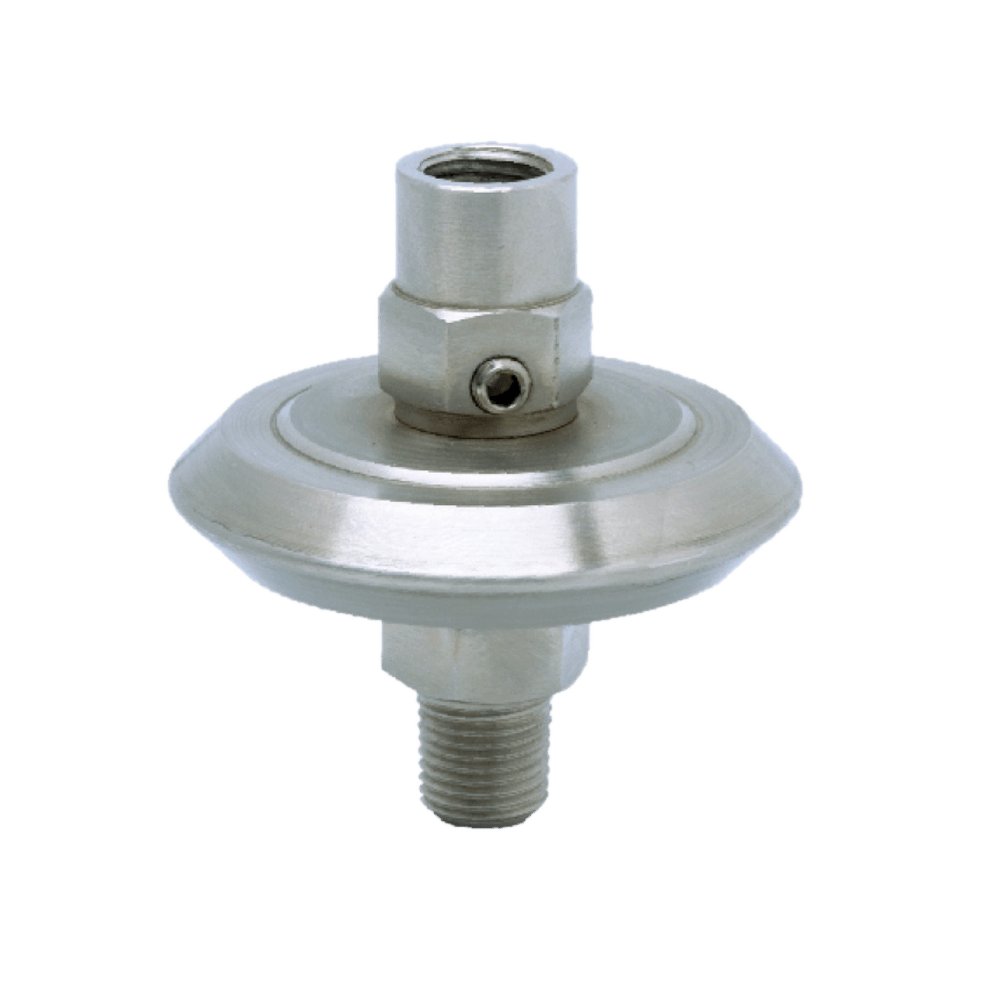

PI-D404
PI Controls Europe - Direct coupled type, compact design
Diaphragm Seal - Customized
- Range type :-1…21 bar
- Wetted parts :AISI 316L SS
- Sealing fluid :Silicon DC 200 (-40…205°C
- Process connection :¼"NPT (M)
- Assembly :Direct

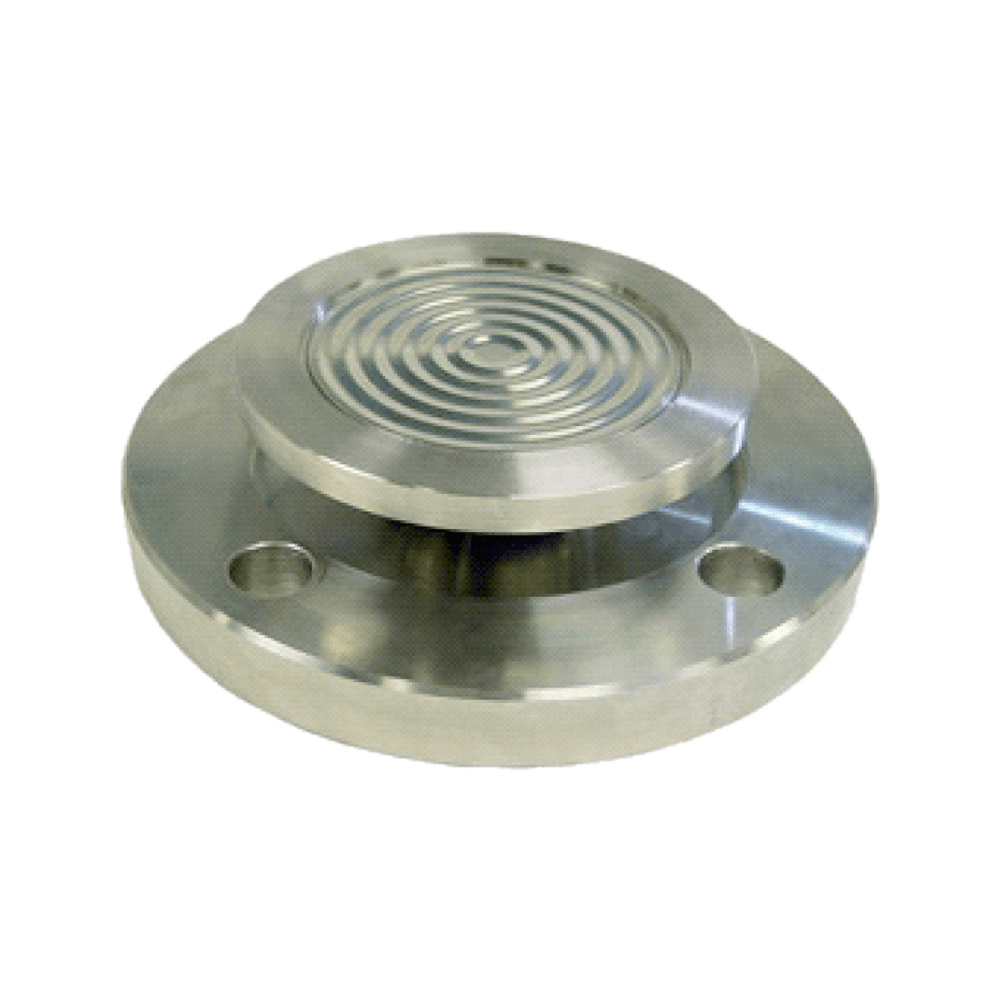

PI-D405
PI Controls Europe - Flanged diaphragm seal, flushed , rotatable flange
Diaphragm Seal - Customized
- Range type :-1…0 bar up to 0…250 bar
- Wetted parts :AISI 316L SS, Monel, Hastelloy C (others on request)
- Sealing fluid :Silicon DC 200 (-40…205°C) (others on request)
- Protection on wetted parts :Optional
- Assembly :Direct/Remote
