PI Controls Europe Products
Manifold
Products
Manifold
Manifold - Standard

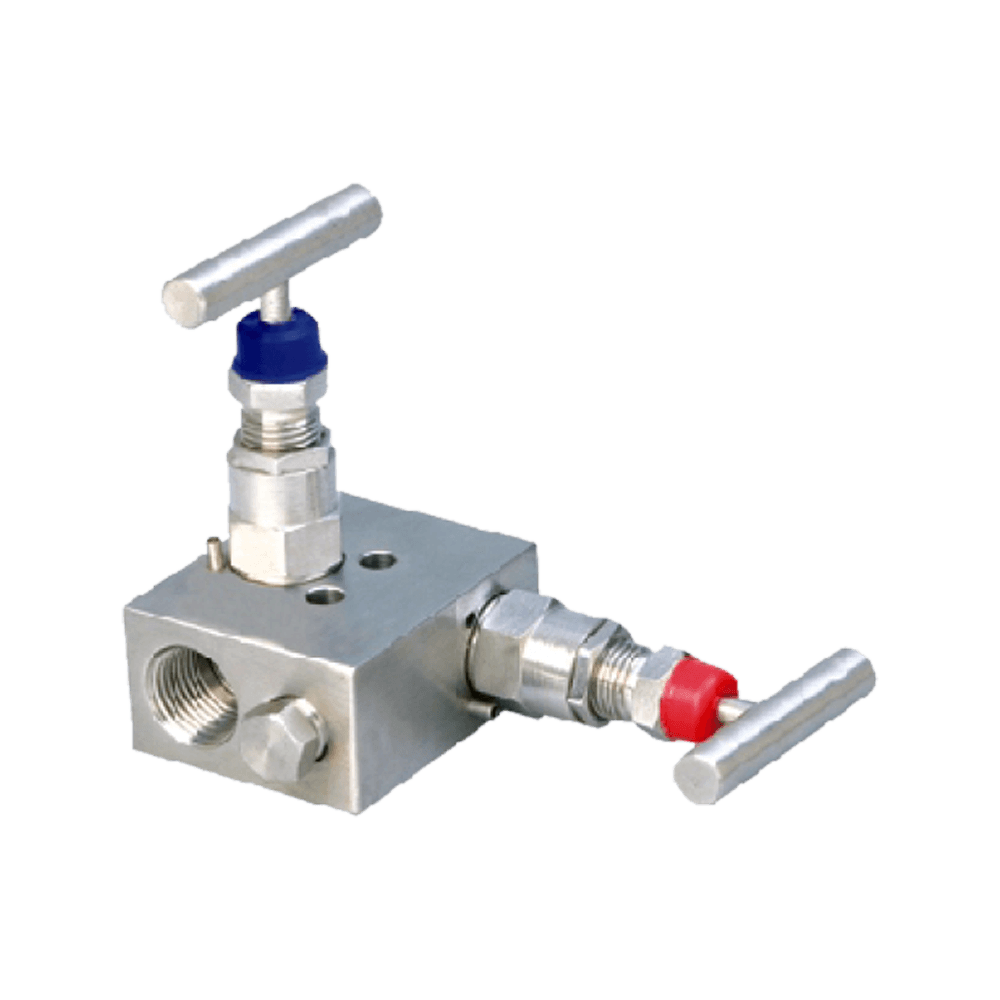

PI-M102
PI Controls Europe - Two valve manifolds
Manifold - Standard
- Mounting :Remote/Direct
- Wetted parts :AISI 316 SS, AISI 316L SS, Monel
- Stem :Conical metal tip
- Max. working pressure :413.7 bar (6000 psi)
- Max. working temperature :240°C

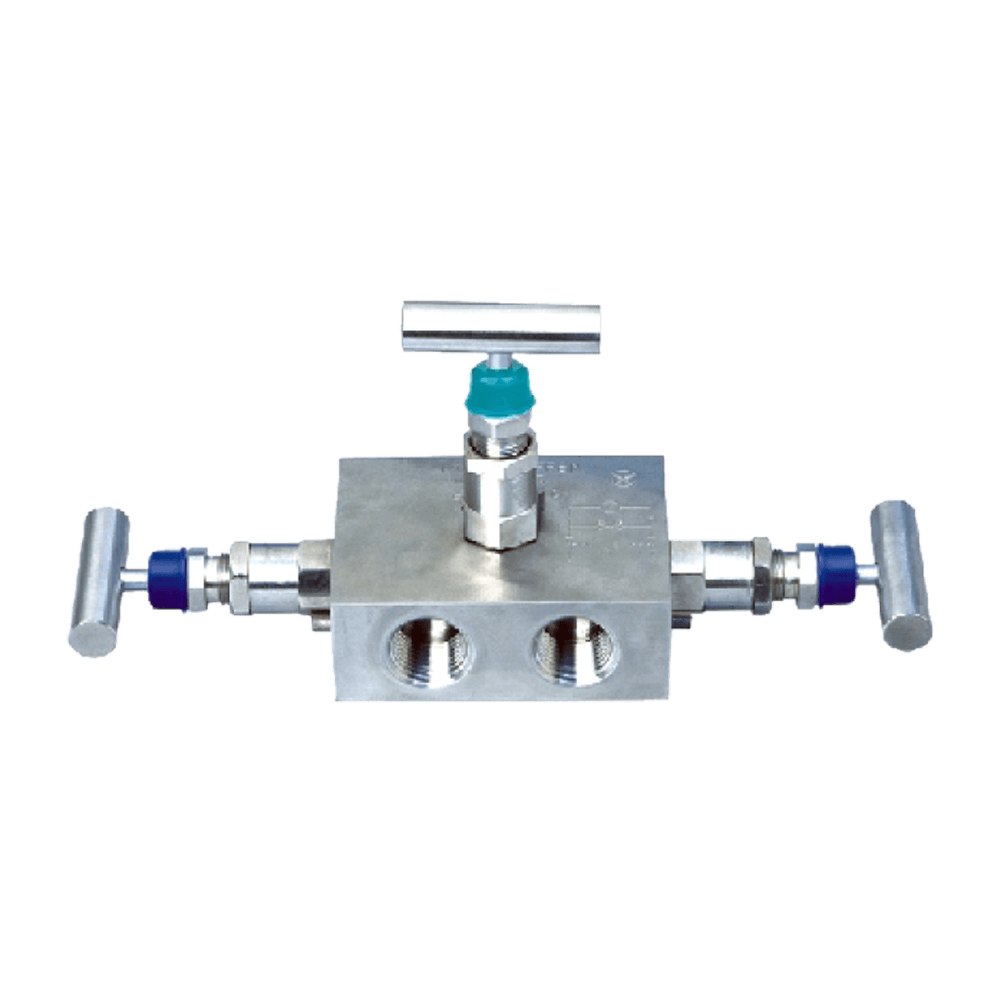

PI-M103
PI Controls Europe - Three valve manifolds
Manifold - Standard
- Mounting :Remote/Direct
- Wetted parts :AISI 316 SS, AISI 316L SS, Monel
- Stem :Conical metal tip
- Max. working pressure :413.7 bar (6000 psi)
- Max. working temperature :240°C

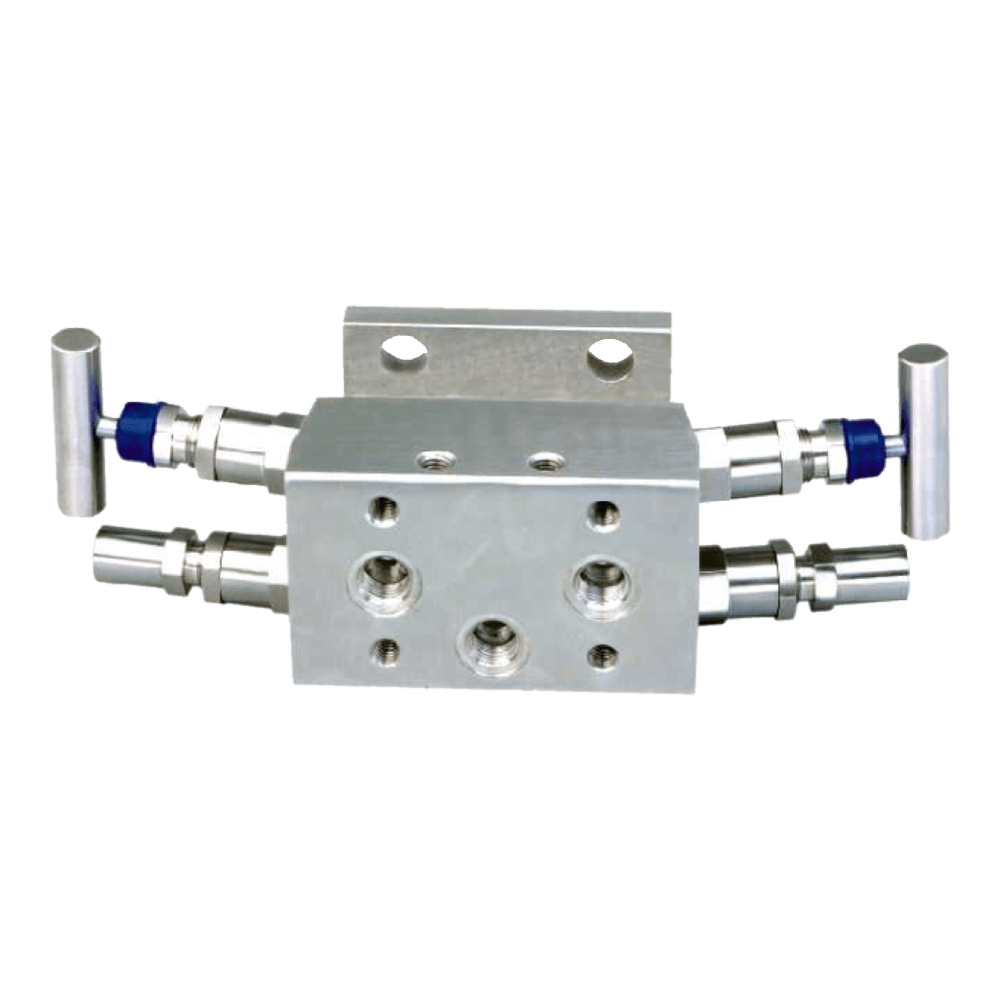

PI-M104
PI Controls Europe - Four valve manifolds
Manifold - Standard
- Mounting :Direct
- Wetted parts :AISI 316 SS, AISI 316L SS, Monel
- Stem :Conical metal tip
- Max. working pressure :413.7 bar (6000 psi)
- Max. working temperature :240°C
PI-M105
PI Controls Europe - Five valve manifolds
Manifold - Standard
- Mounting :Remote/Direct
- Wetted parts :AISI 316 SS, AISI 316L SS, Monel
- Stem :Conical metal tip
- Max. working pressure :413.7 bar (6000 psi)
- Max. working temperature :240°C
Manifold - Customized

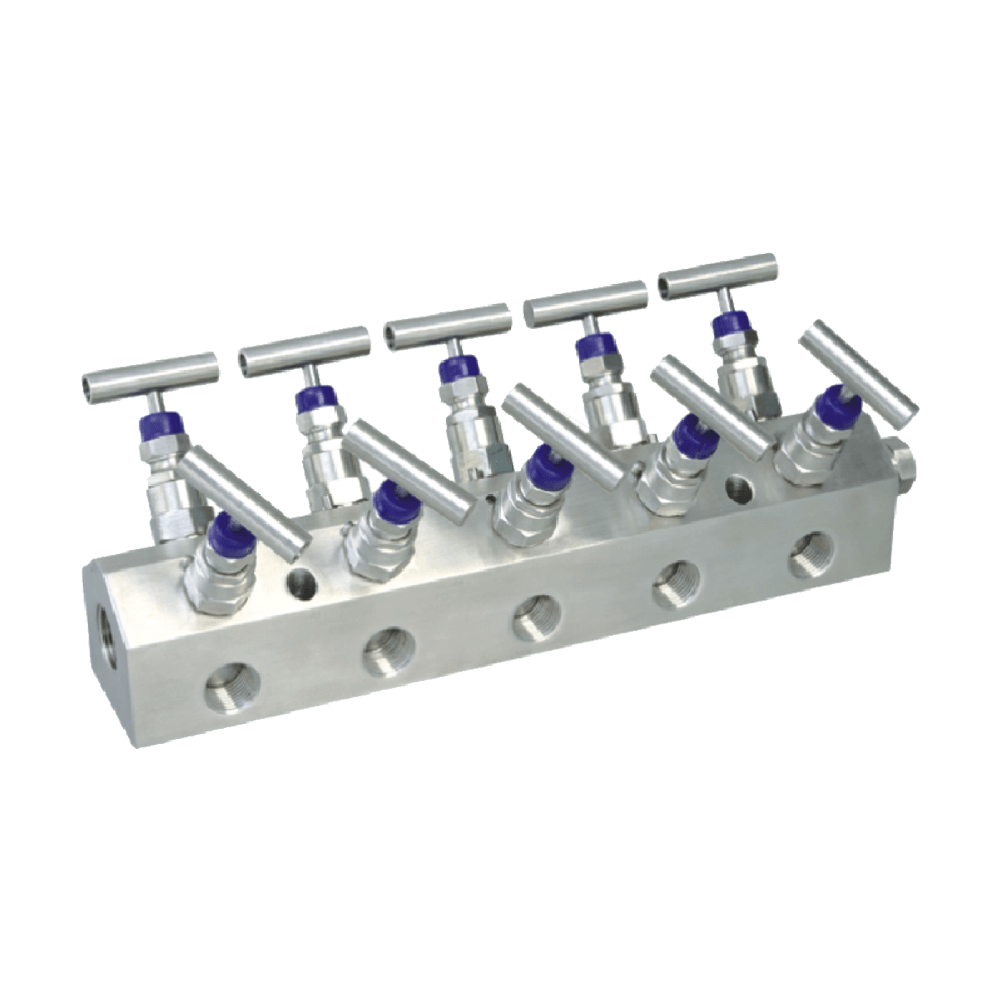

PI-M201
PI Controls Europe - Distribution manifolds
Manifold - Customized
- No. of ports :4 to 18 ports
- Wetted parts :AISI 316 SS, AISI 316L SS, Monel
- Stem :Conical metal tip
- Max. working pressure :413.7 bar (6000 psi)
- Max. working temperature :240°C

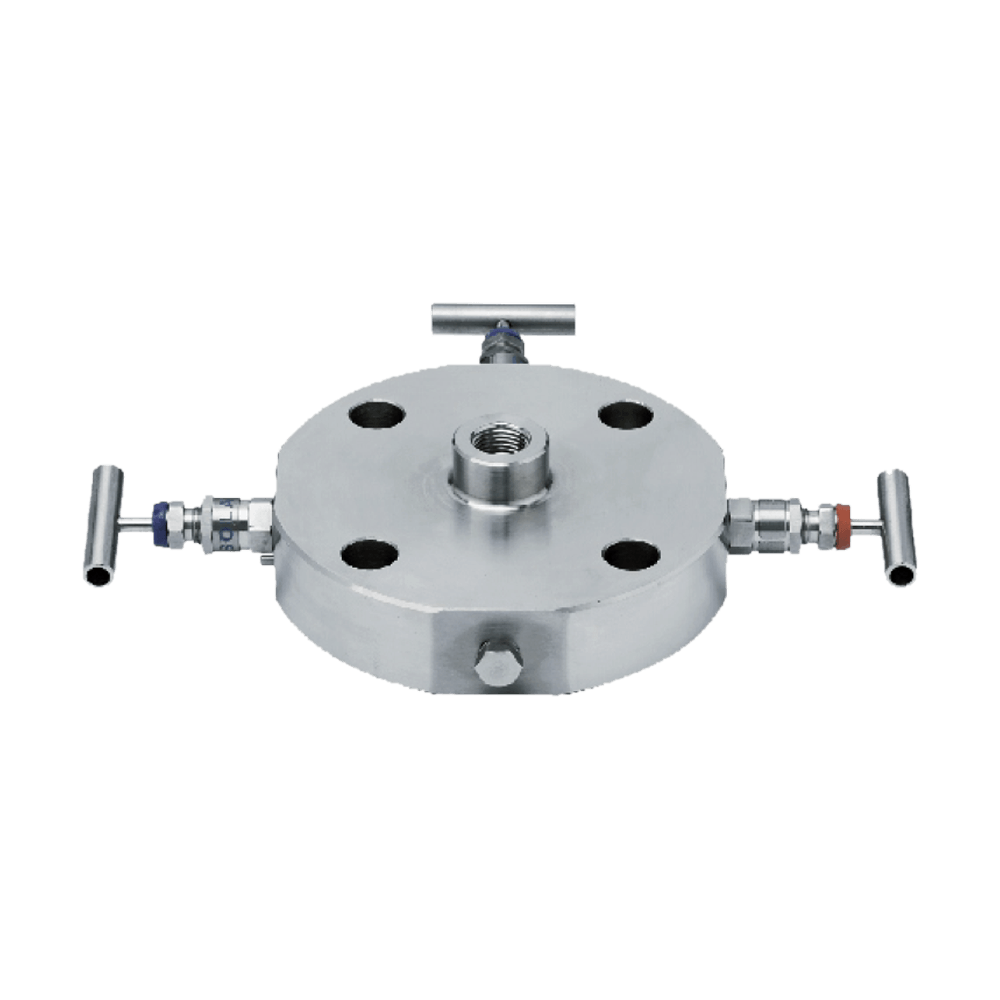

PI-M202
PI Controls Europe - Monoflanges
Manifold - Customized
- Type :SBB, SBB+Siphon, DBB
- Wetted parts :AISI 316 SS, AISI 316L SS, Monel
- Stem :Conical metal tip
- Max. working pressure :413.7 bar (6000 psi)
- Max. working temperature :240°C
